Paint machinery Manufacturer

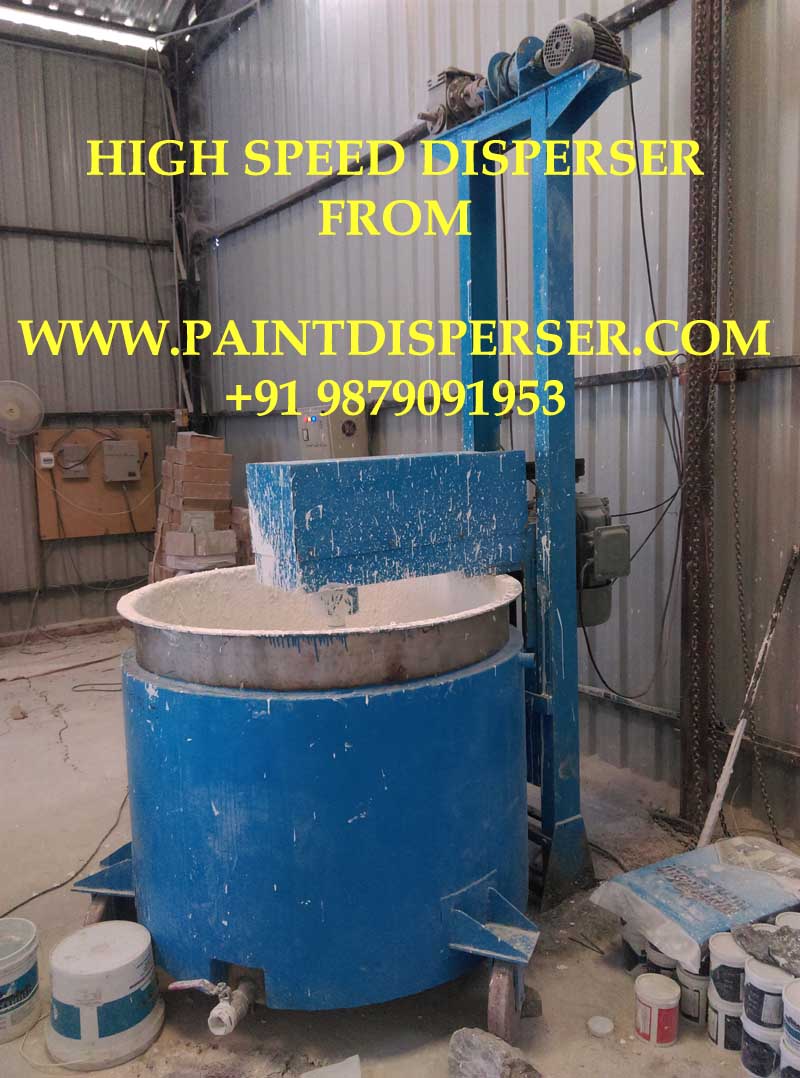

High Speed Disperser

high Speed Disperser

  • Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • to dissolve and disperseion of Liquid and Liquid with solids
  • Manual or Hydraulic Up and Down Arrangment Available
  • Starring Capacity Ranging from 50 litrer to 1000 liters
  • High Speed Disperser Suitable for Putty, Primers, Distempers, Plastic paint , Exterior emulsions & premium wall finishes for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding.

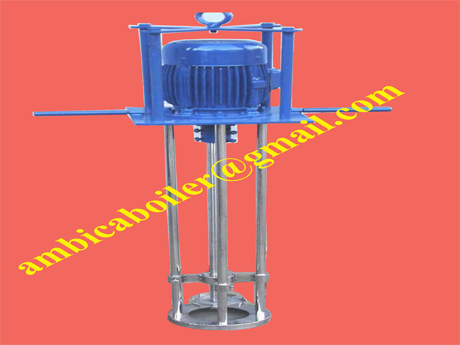

High Speed Stirrer

high speed stirrer Uses for Various type of Mixing and Homoginizing of Chemical, Paint and many other chemical, liquid where highe shear Rate Required.

  • High Speed Stirrer Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • to dissolve and disperseion of Liquid and Liquid with solids
  • Manual or Hydraulic Up and Down Arrangment Available
  • Starring Capacity Ranging from 50 litrer to 1000 liters
  • It is available in different sizes : -
    1 H.P, 2 H.P, 5 H.P, 7.5 H.P, 10 H.P 15 H.P.

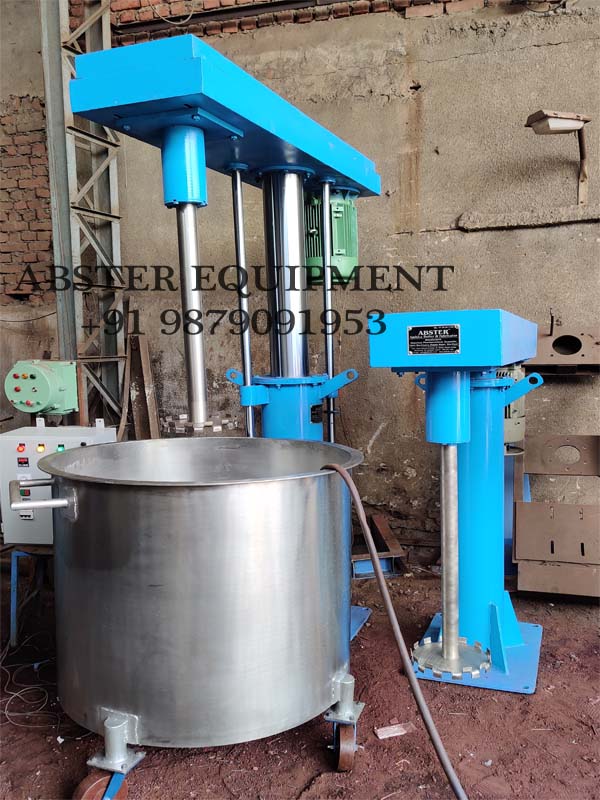

Hydraulic High Speed Dissolver Mixer

Hydraulic High Speed Dissolver Mixer Hydraulic High Speed Dissolver Mixer Uses for Various type of Mixing and Homoginizing of Chemical, Paint and many other chemical, liquid where highe shear Rate Required.

  • High Speed Stirrer Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • to dissolve and disperseion of Liquid and Liquid with solids
  • Manual or Hydraulic Up and Down Arrangment Available
  • Starring Capacity Ranging from 50 litrer to 1000 liters
  • It is available in different sizes : -
    1 H.P, 2 H.P, 5 H.P, 7.5 H.P, 10 H.P 15 H.P.

TSD - Twin Shaft Disperser

TSD - Twin Shaft Disperser Twin Shaft Disperser also called as TSD used in Acrylic Emulsion paint making. Hydraulic High Speed Dissolver Mixer Uses for Various type of Mixing and Homoginizing of Chemical, Paint and many other chemical, liquid where highe shear Rate Required.

  • High Speed Stirrer Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • to dissolve and disperseion of Liquid and Liquid with solids
  • Manual or Hydraulic Up and Down Arrangment Available
  • Starring Capacity Ranging from 50 litrer to 1000 liters
  • It is available in different sizes : -
    1 H.P, 2 H.P, 5 H.P, 7.5 H.P, 10 H.P 15 H.P.

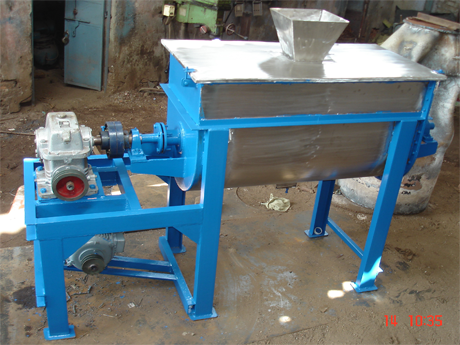

Pug Mill/Pug Mixer

Pug Mixer Machine for PuttyUses for Various type of Mixing and Blending of Powder, Chemical, Paint, Putty and many other chemical, liquid, Solids, Solid liquid.

  • Suitable for Paint, Pigment, Dyestuff, Coating Printing Ink, for mixing, Dispersing, grinding
  • to blend and mixing of Dry , Wet material,
  • with jacket or without jacket Available
  • Blending Capacity Ranging from 50 litrer to 1000 liters
  • It is available in different sizes and capacity : - Ranging from
    50 liters capacity to 5000 liters.

Sigma Kneader / Sigma Mixer

sigma mixer

  • Sigma Mixer machine comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/teflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.

    APPLICATION: Suitable for Kneading, Mixing & Dispersing and of viscous material having dough like consistency used in the Paint, Pigment, Chemical, Pharmaceutical, Food, Adhesives, Dyestuff, Paint, Refractory, Rubber, Plastic and related industries.

    Tilting option:

    Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.

Ball Mill

Ball Mill

Capacity : As per Customers requirment from 50 liter to 5000 liters.
Ball Mill are used for Grinding and milling, Partical Size Reduction for various product like Paint, Pigment, and allied chemical. it is also come with water cooling jacket where acess heat generate by Grinding. We also manufactureing a ceramic brick lined ball mill as per customers requirment.

Paint Machinery Application: * Varnishes & Paints * Polyurethanes * Colourants * Inks * Foods * Resins, Glues, Adhesives * Pharmaceutical Products * Chemicals * Lacquers * Cosmetics
